❗️Before You Buy: Does Your Vehicle Support CCS Communication Protocol?

Tesla (NACS) vehicle and plan to charge at CCS stations, you will need both this adapter and a vehicle that supports the CSS communication protocol.

How to Check CCS Compatibility

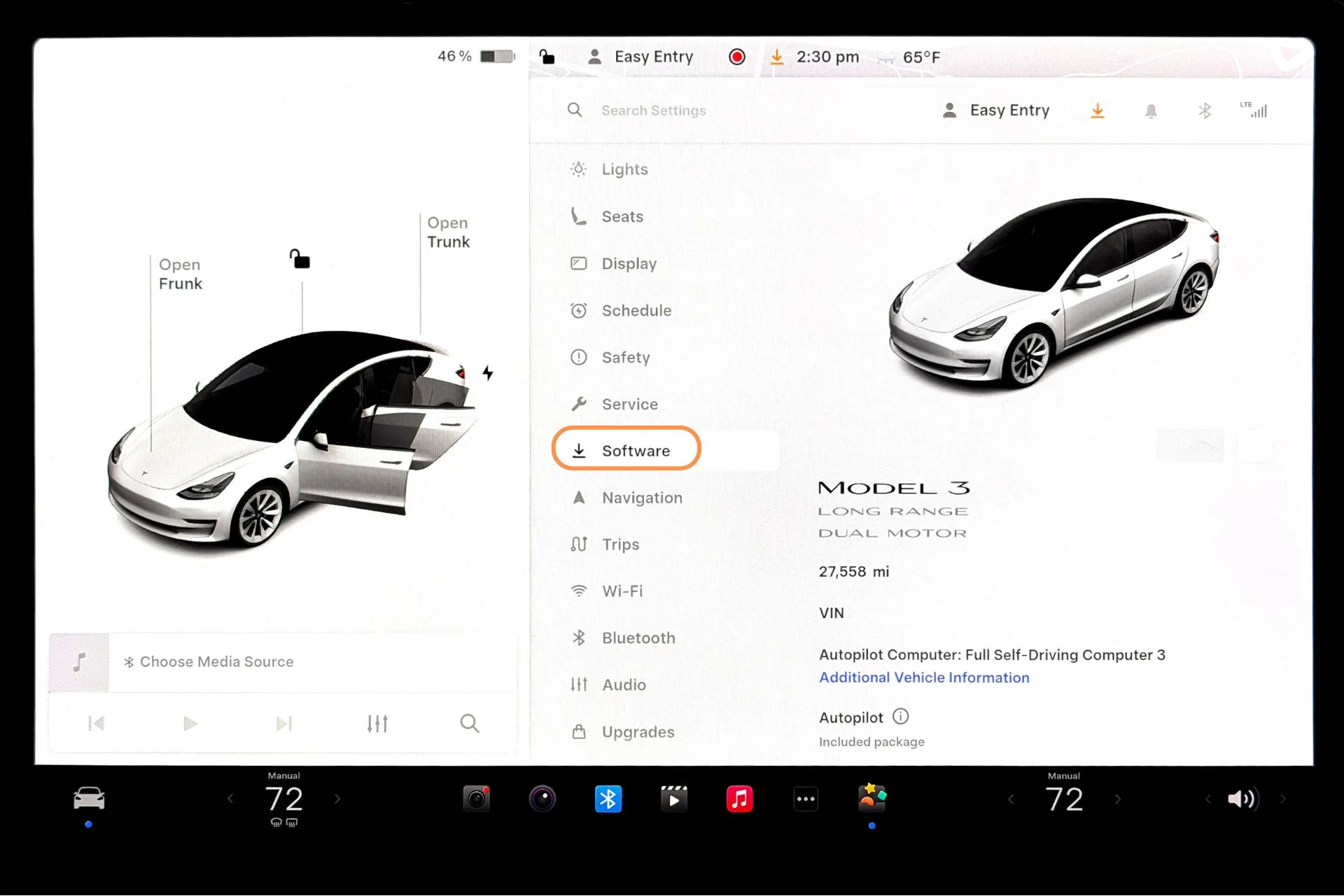

On your Tesla touchscreen, go to:

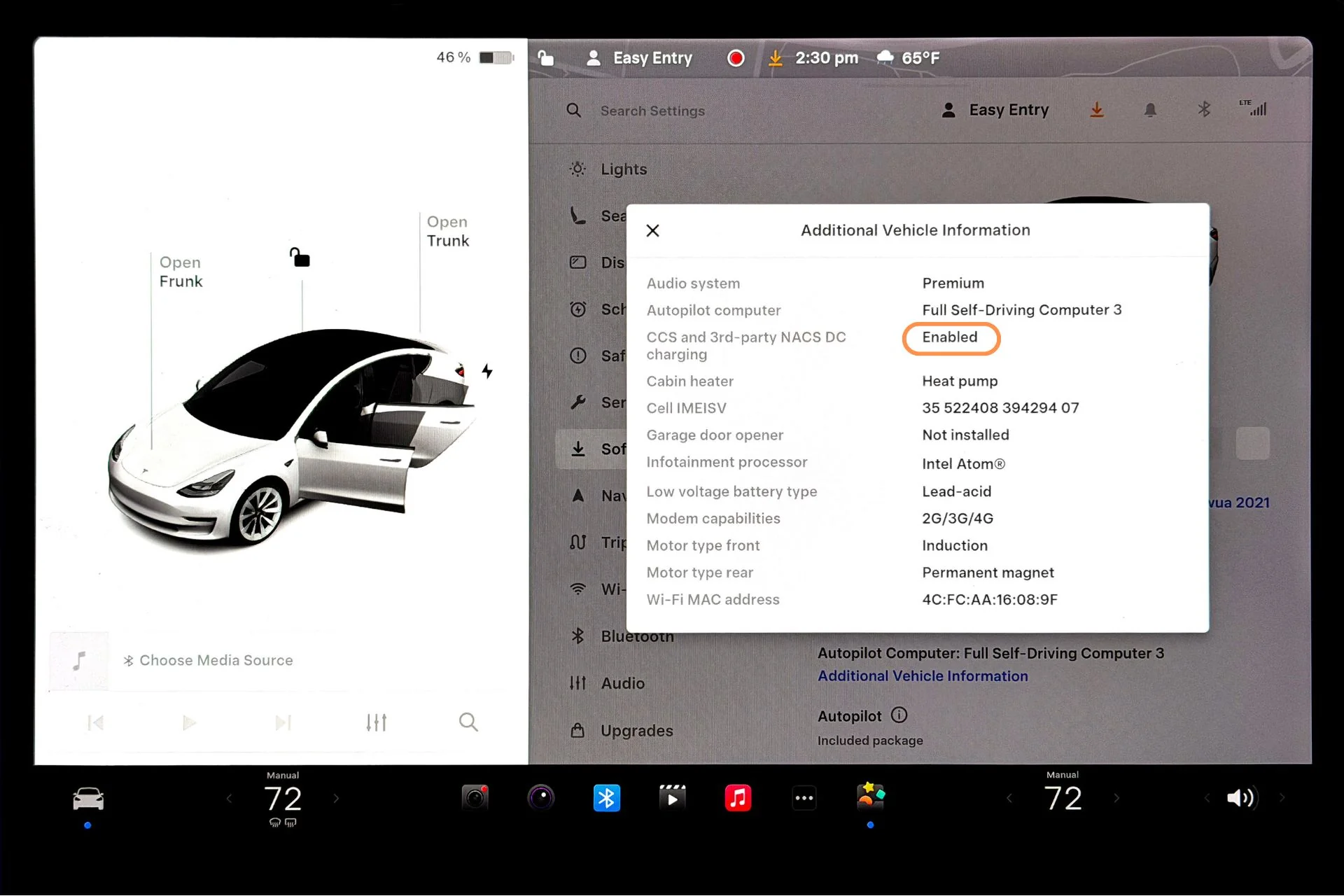

Controls > Software > Additional Vehicle Information > CCS and 3-Party NACS DC Charging Support

✅ Enabled – Your vehicle supports the CCS protocol and can charge at any CCS charging station (with an adapter) and third-party NACS fast chargers.

❌ Not Enabled – Your vehicle does not currently support CCS charging. Check the Tesla mobile app to see if you qualify for a hardware upgrade. Eligibility varies.

❌ Not Compatible – Your vehicle cannot support the CCS protocol and will not work with third-party NACS or CCS charging stations.

Specifications

Expanded Charging Access for NACS (TPC) Owners

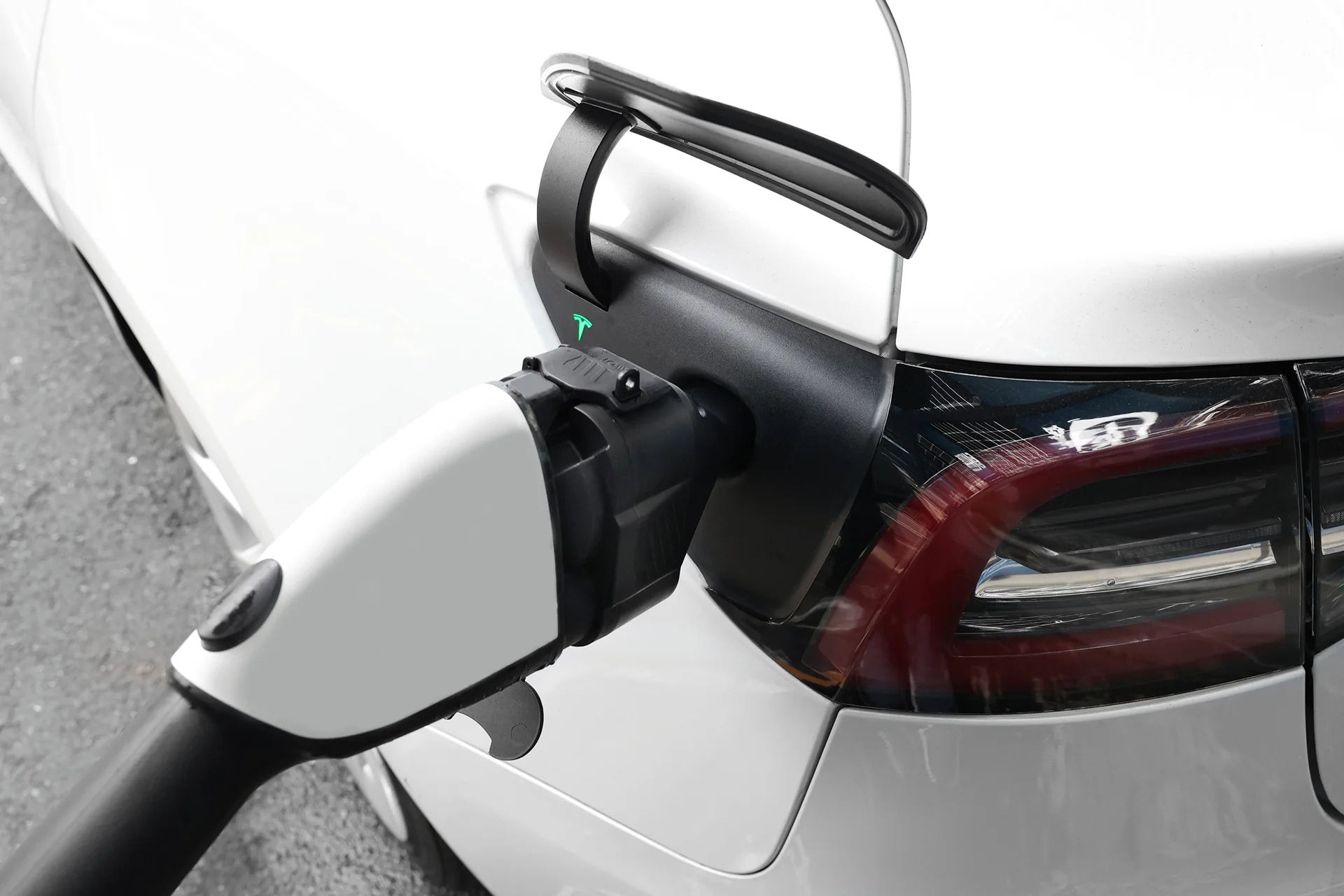

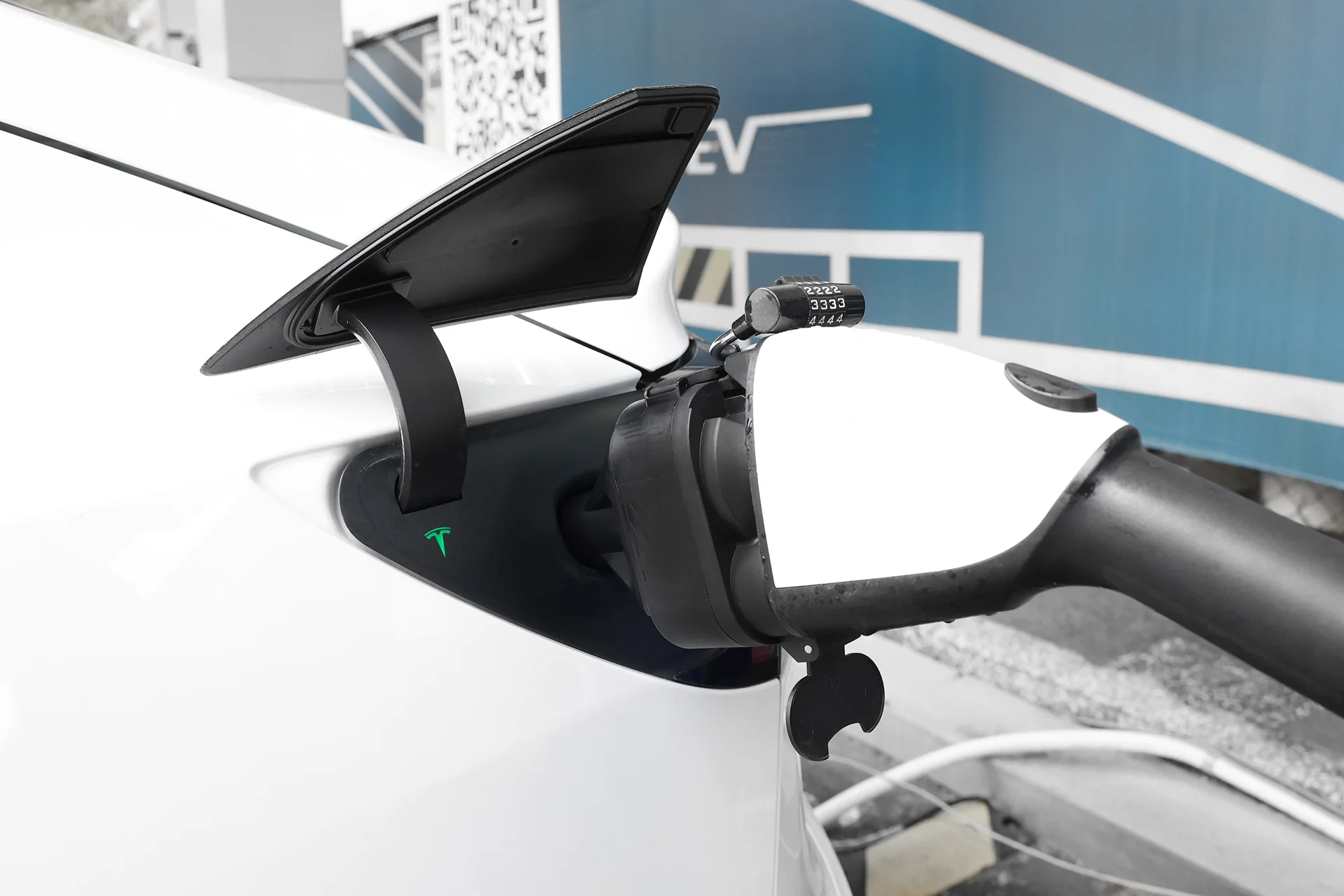

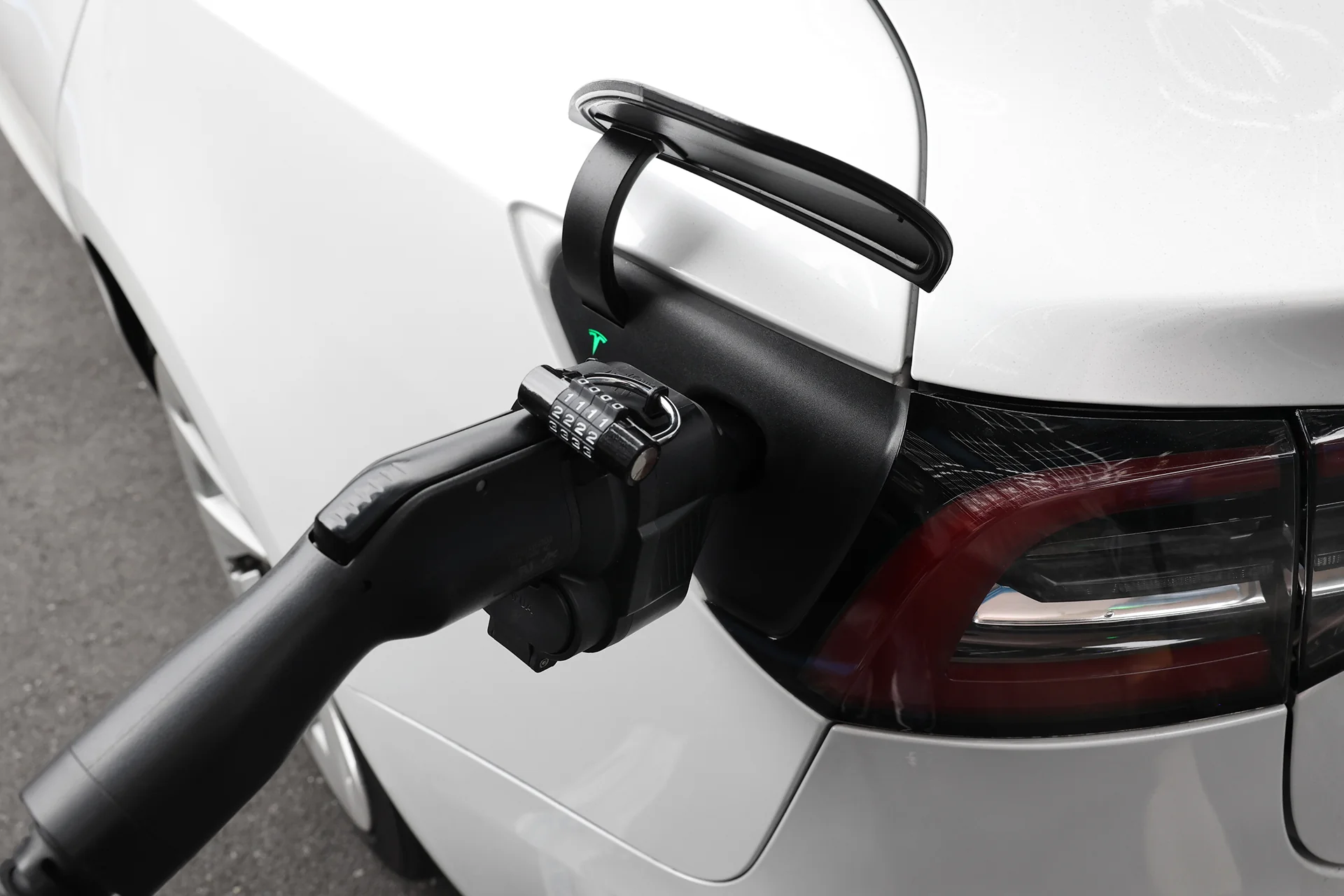

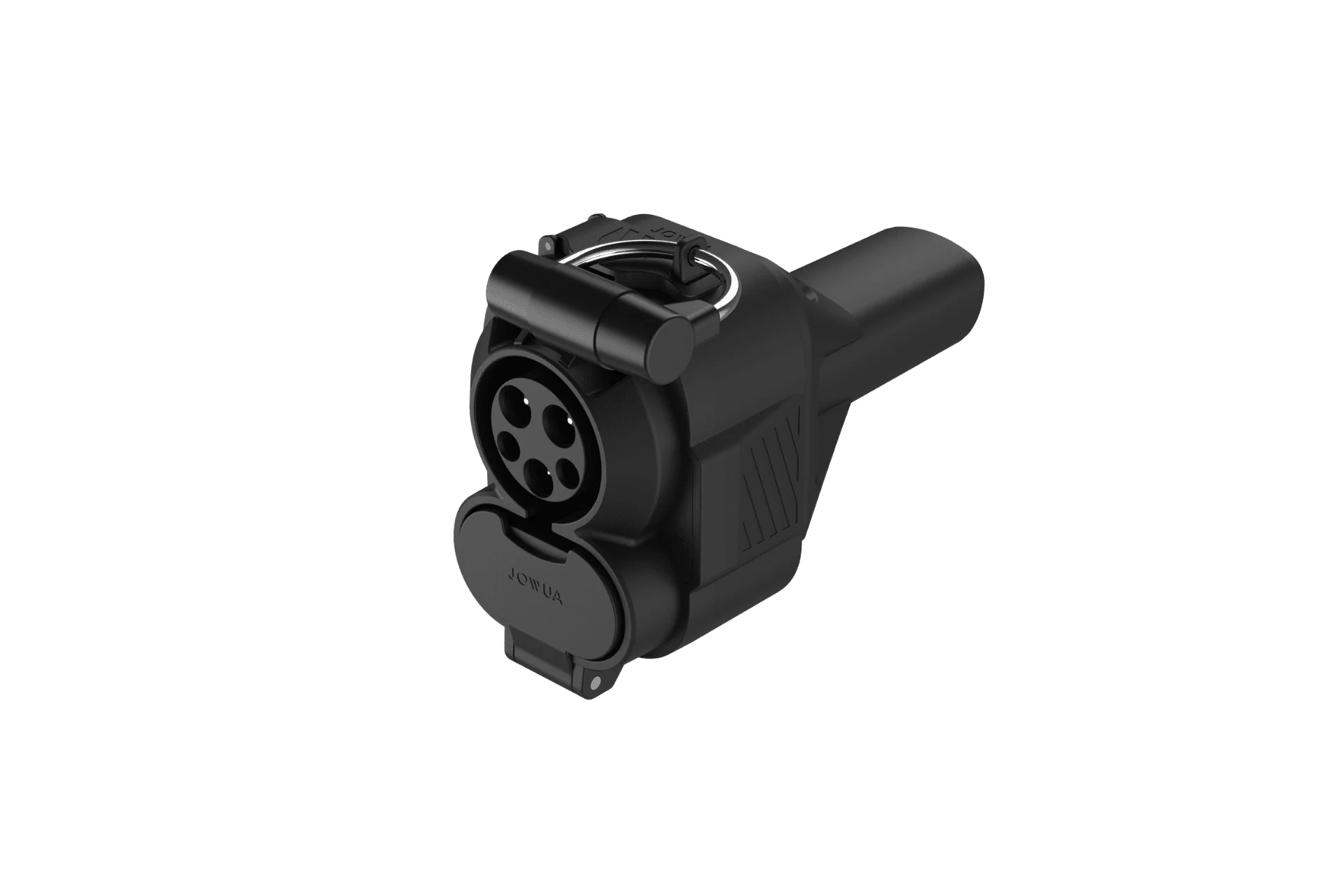

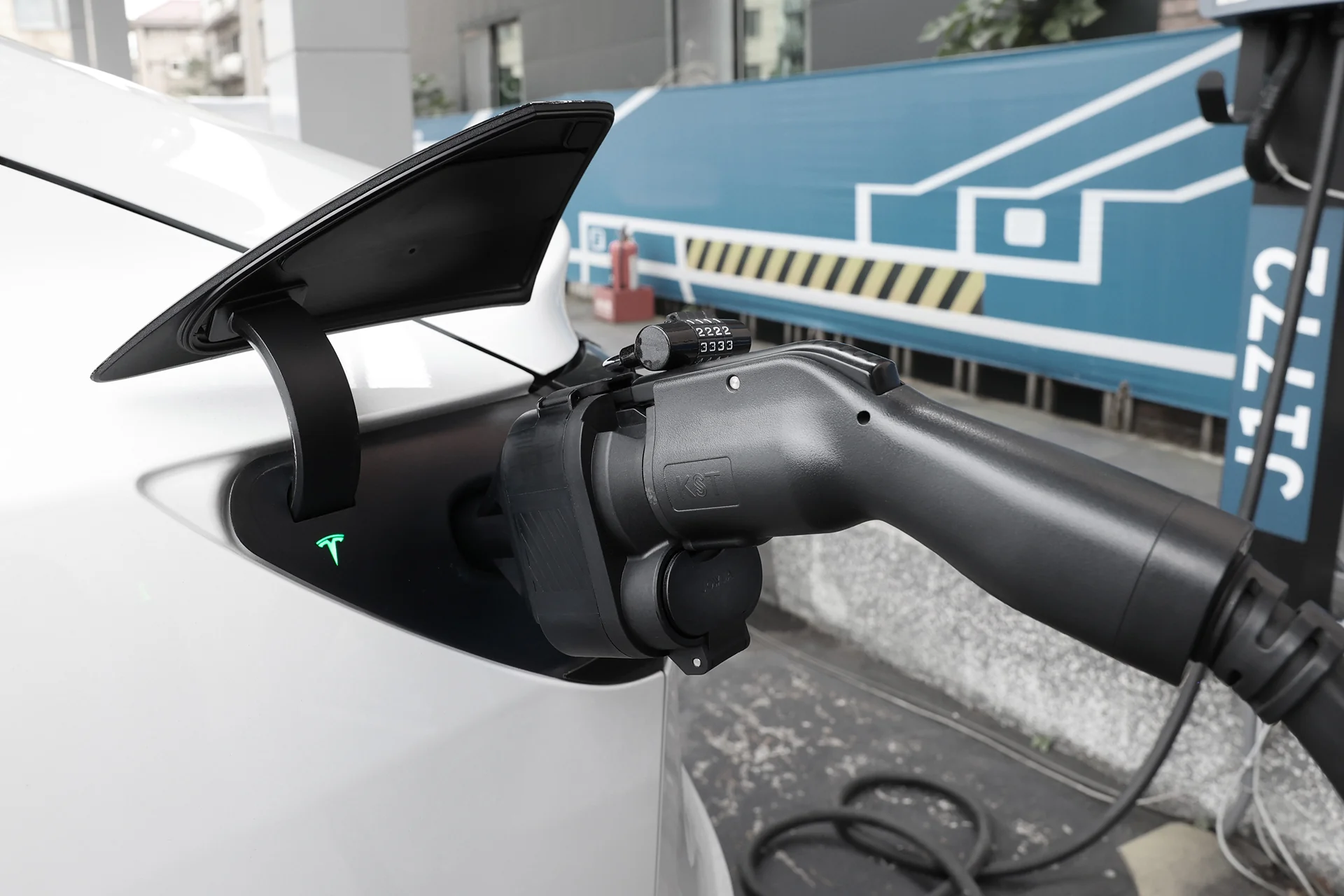

This adapter is compatible with third-party CCS1 (AC & DC) slow & fast charging networks, allowing NACS (TPC) vehicle owners to charge at CCS1 (AC & DC) stations with ease.

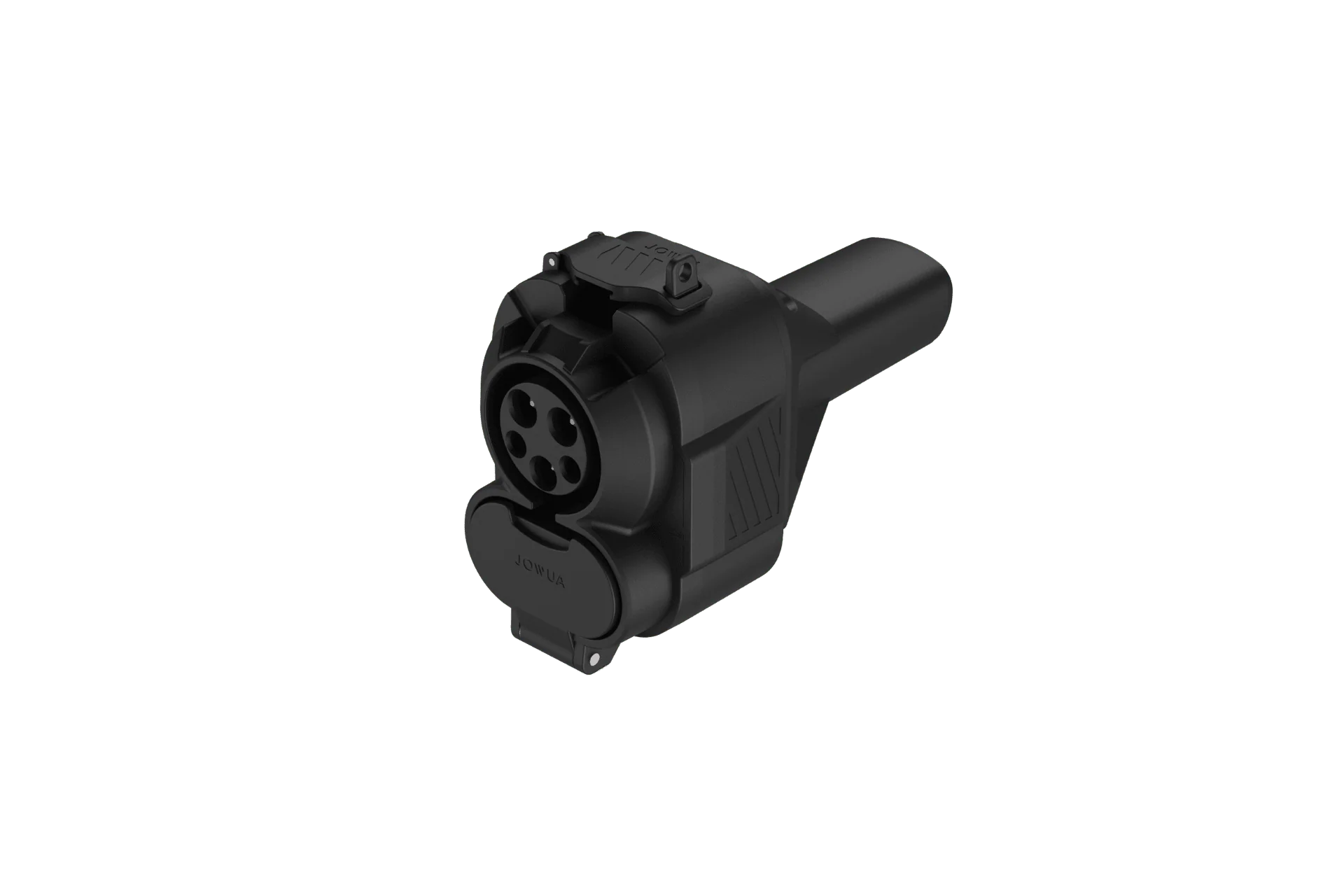

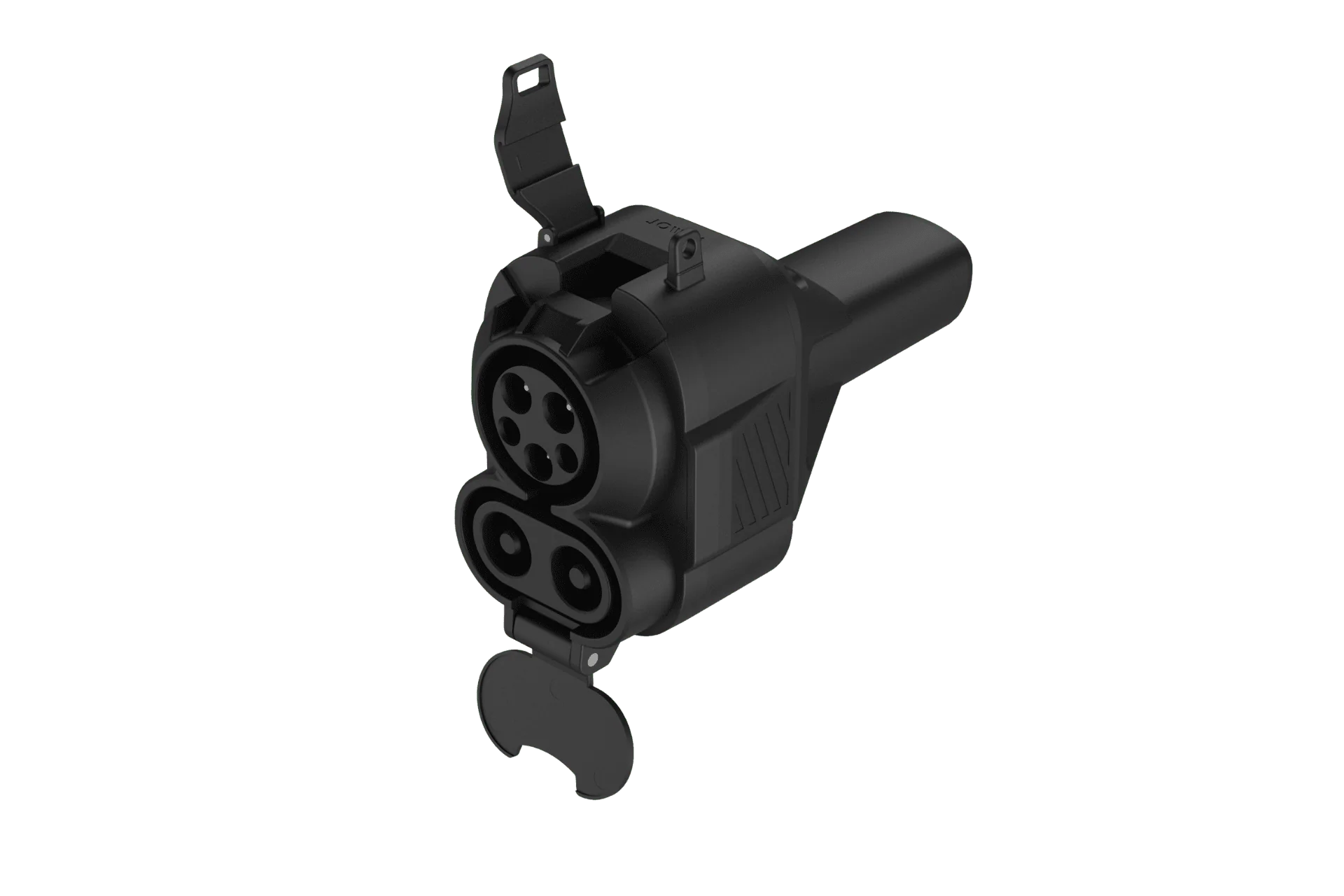

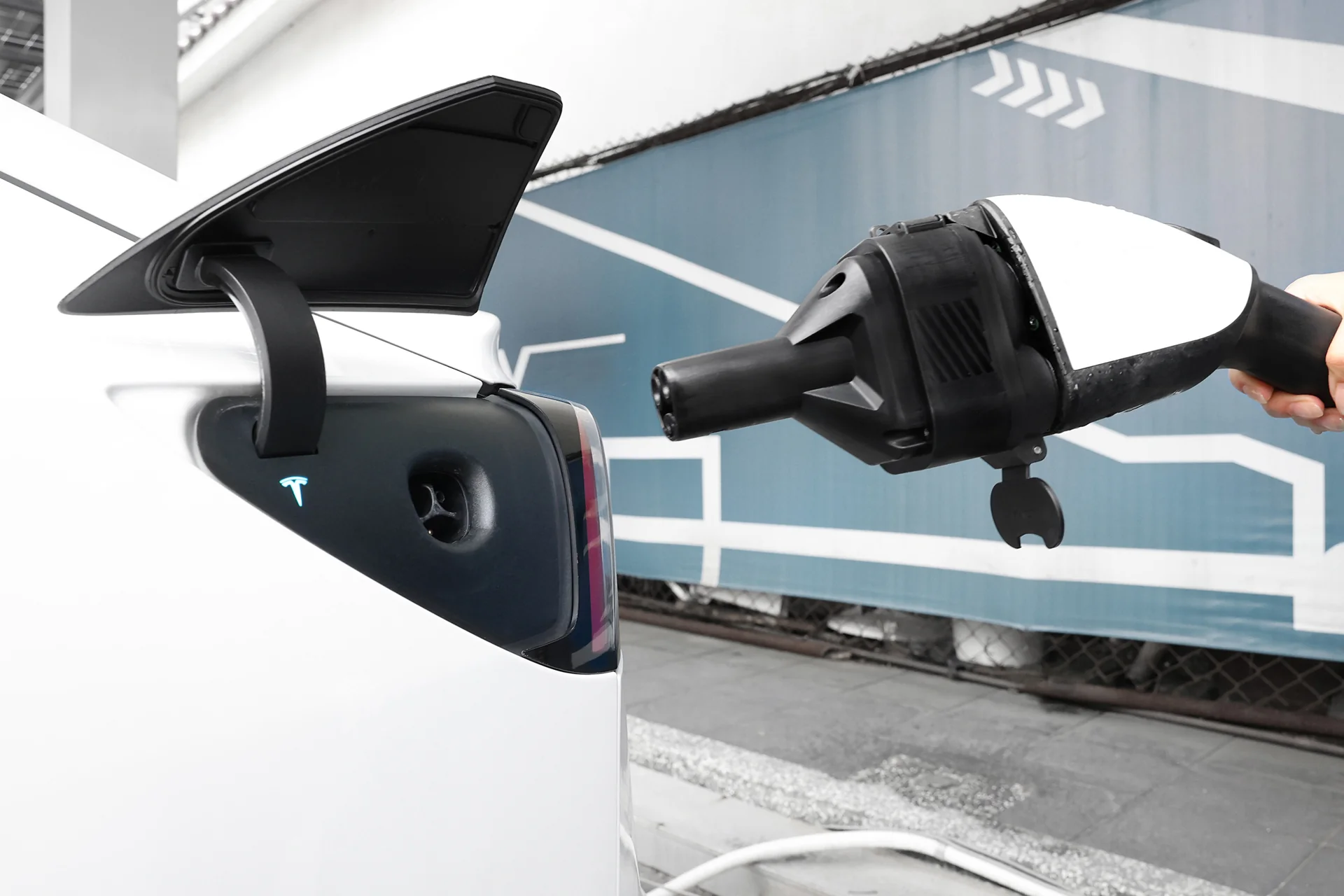

Compatible with Cybertruck

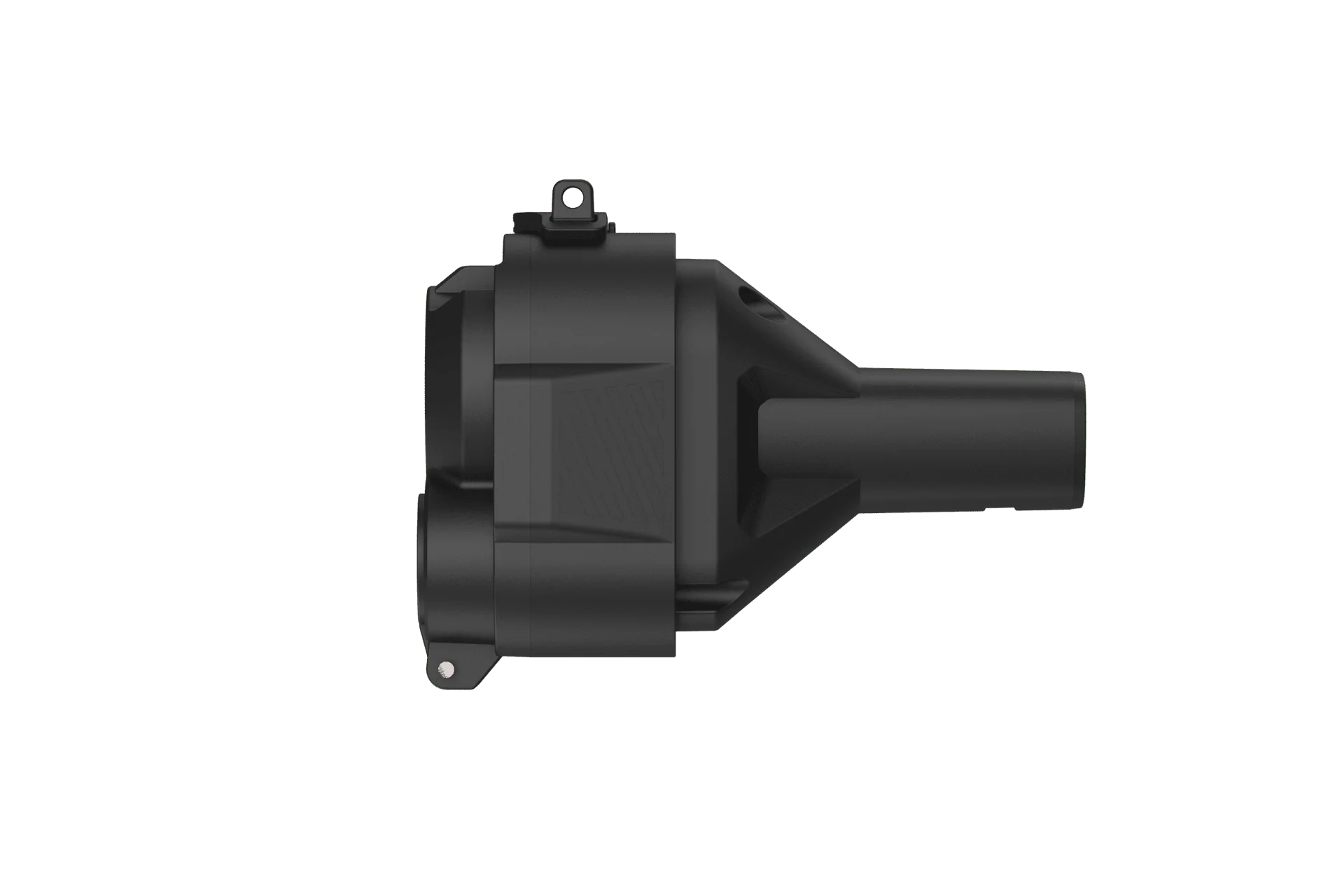

Extended Connector Design, and zero interference with original charge port.

Advanced Temperature Protection
Built-in temperature monitoring chip continuously tracks heat levels. If overheating is detected, an automatic shutdown feature activates for maximum safety.

Electrical Performance

• DC Charging | Rated Voltage 300-1000V / 250kW Max
• AC Charging | Rated Voltage 110-250V / 40A Max
• Charging Efficiency: Dependent on third-party charging station specifications
• Maximum Current: 48A

UL94 V-0 Flame Retardant Material
Highest safety standards – Self-extinguishing upon flame removal. Constructed with high-grade fire-resistant nylon, heat-resistant up to 280°C

Includes Storage Case
Designed for easy storage and portability

Extended Warranty
Register your product to extend the warranty to 4 years.

Spec

Rated Voltage / Maximum Power	DC Power: 300-1000V / 250kW Max AC Power: 110-250V / 40A Max
Insertion/Extraction Force	F < 80N
Durability	No-load plug/unplug > 10,000 cycles
Flame Retardant	UL94 V-0

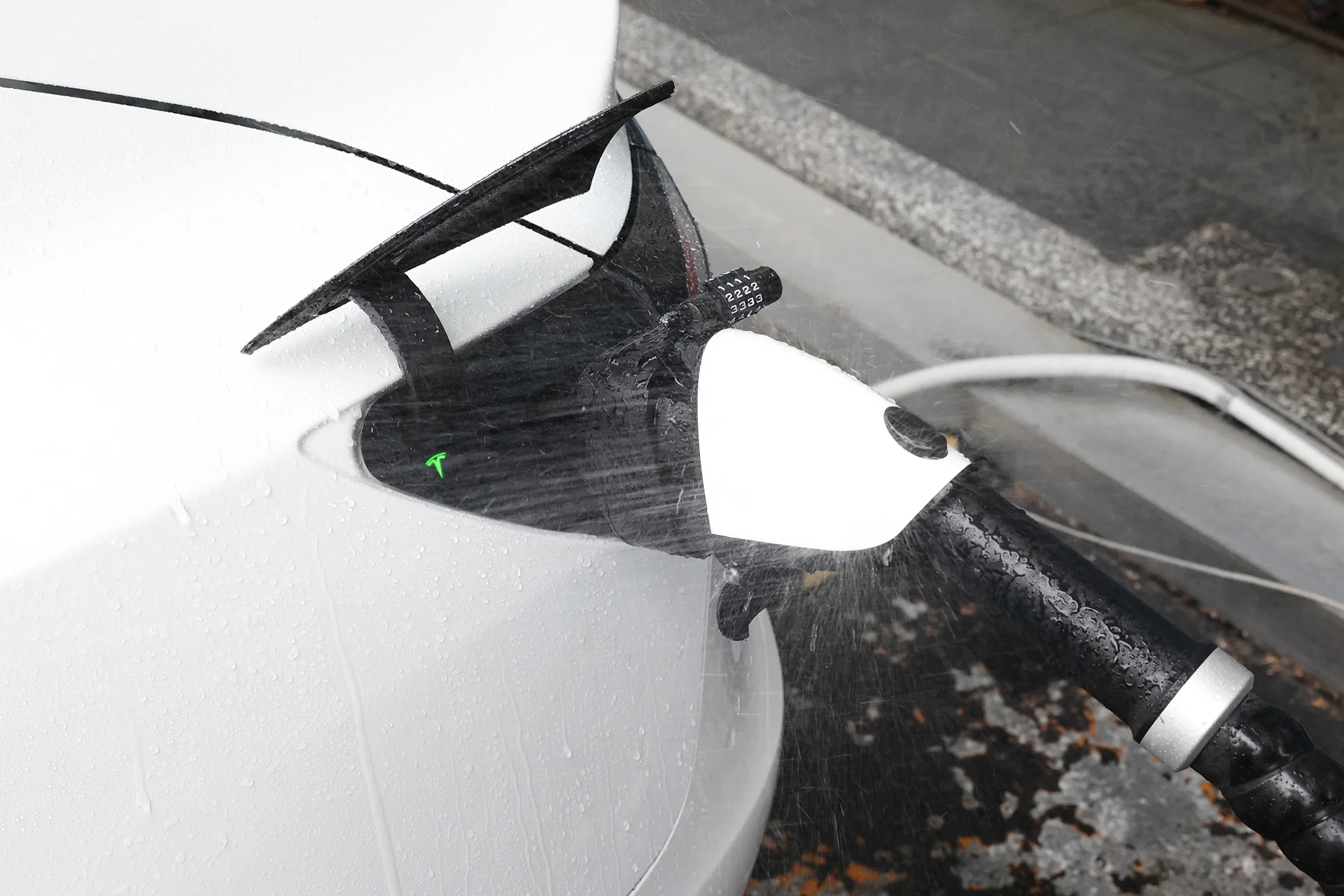

Protection Rating	IP55 / IK08
Operating Temperature	-30°C to +50°C
International Standards	IEC 62196-3 North American Charging Standard SAE J3400)
